Object Detection
copy markdown
Detect and identify objects from an input image. It locates bounding boxes, classify objects, and return structured metadata describing each detected entity.
- Accurate bounding boxes and segmentation masks for each object
- Support for a wide range of industries, construction, retail, healthcare, biology, and more
- Computer GUI detection
Real time object detection of an image
OpenAI SDK
Vercel AI SDK
LangChain SDK
typescript
python
import { z } from "zod";
import { zodResponseFormat } from "openai/helpers/zod";
const DetectionSchema = z.object({
objects: z.array(
z.object({
name: z.string().describe("describe the object in the image"),
top_left_x: z.number(),
top_left_y: z.number(),
bottom_right_x: z.number(),
bottom_right_y: z.number(),
})
),
texts: z
.array(
z.object({
text: z.string(),
top_left_x: z.number(),
top_left_y: z.number(),
bottom_right_x: z.number(),
bottom_right_y: z.number(),
})
)
.describe("any alphabetic characters text in the image"),
});
const response = await interfaze.chat.completions.create({
model: "interfaze-beta",
messages: [
{
role: "user",
content: [
{ type: "text", text: "Get the position of the crane in the image and any text" },
{
type: "image_url",
image_url: {
url: "https://r2public.jigsawstack.com/interfaze/examples/construction.png",
},
},
],
},
],
response_format: zodResponseFormat(DetectionSchema, "detection_schema"),
});
console.log(response.choices[0].message.content);
//@ts-expect-error precontext is not typed
const precontext = response.precontext;

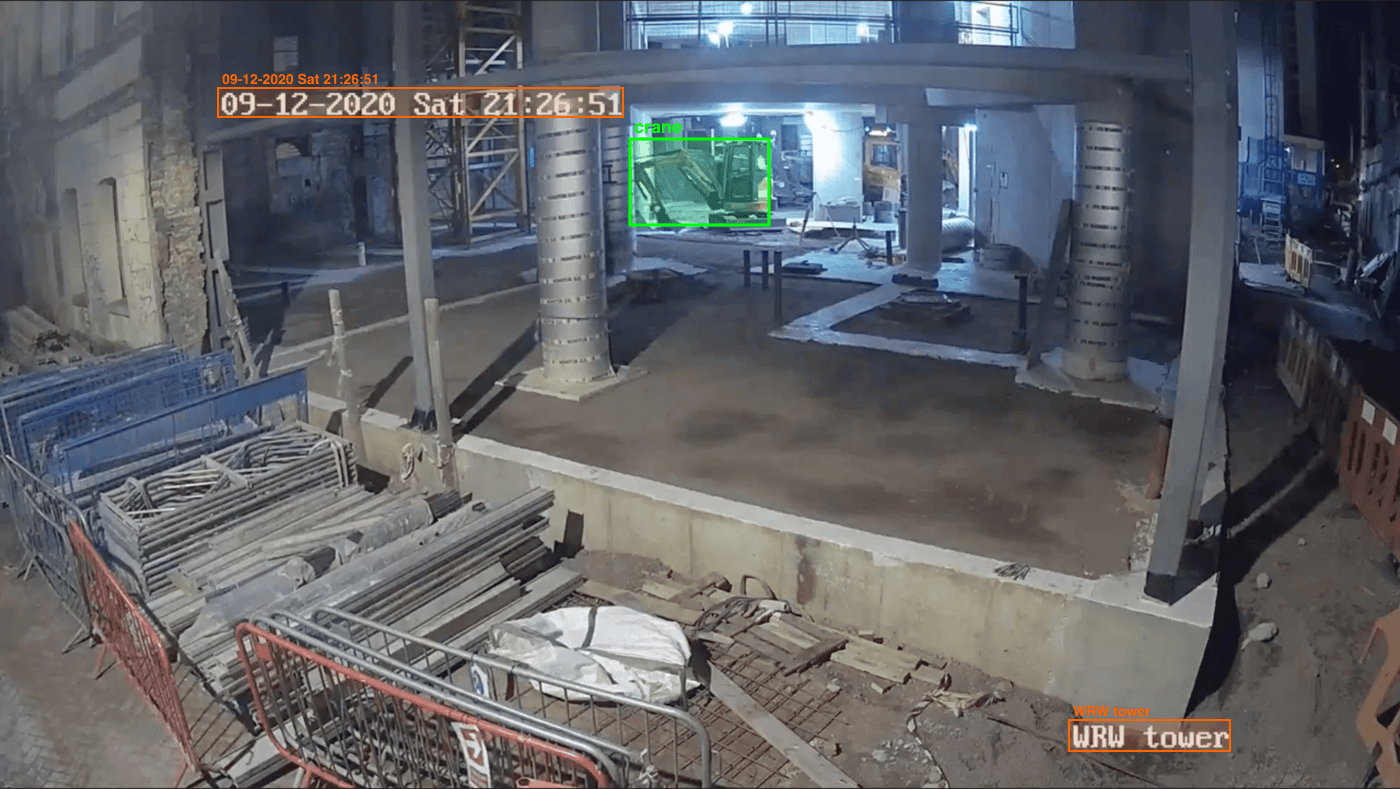

console.log("Object Detection Results:", precontext[0]?.result);Bounding boxes mapped to the image
JSON output
object contains the extracted information defined in the schema. precontext contains the raw metadata such as bounding boxes and confidence scores.
{
"object": {
"objects": [
{
"name": "crane",
"top_left_x": 630,
"top_left_y": 139,
"bottom_right_x": 769,
"bottom_right_y": 225
}
],
"texts": [
{
"text": "09-12-2020 Sat 21:26:51",
"top_left_x": 218,
"top_left_y": 88,
"bottom_right_x": 623,
"bottom_right_y": 117
},
{
"text": "WRW tower",
"top_left_x": 1069,
"top_left_y": 720,
"bottom_right_x": 1230,
"bottom_right_y": 751
}
]
},
"response": {
"id": "interfaze-1775001605439",
"modelId": "interfaze-beta",
"body": {
"id": "interfaze-1775001605439",
"object": "chat.completion",
"model": "interfaze-beta",
"usage": {
"prompt_tokens": 4903,
"completion_tokens": 8566,
"total_tokens": 13469
},
"precontext": [
{
"name": "object_detection",
"result": {
"detected_objects": [
{
"bounds": {
"top_left": {
"x": 630,
"y": 139
},
"top_right": {
"x": 769,
"y": 139
},
"bottom_left": {
"x": 630,
"y": 225
},
"bottom_right": {
"x": 769,
"y": 225
},
"width": 139,
"height": 86
},
"label": "crane"
}
],
"gui_elements": [
{
"type": "text",
"bounds": {
"top_left": {
"x": 1140,
"y": 722
},
"top_right": {
"x": 1232,
"y": 722
},
"bottom_left": {
"x": 1140,
"y": 752
},
"bottom_right": {
"x": 1232,
"y": 752
},
"width": 92,
"height": 30
},
"interactivity": false,
"content": "tower"
}
]
}
},
{
"name": "ocr",
"result": {
"extracted_text": "09-12-2020 Sat 21:26:51\nWRW tower",
"sections": [
{
"text": "09-12-2020 Sat 21:26:51\nWRW tower",
"lines": [
{
"text": "09-12-2020 Sat 21:26:51",
"bounds": {
"top_left": {
"x": 218,
"y": 88
},
"top_right": {
"x": 623,
"y": 87
},
"bottom_right": {
"x": 623,
"y": 117
},
"bottom_left": {
"x": 218,
"y": 118
},
"width": 405,
"height": 30
},
"average_confidence": 0.99,
"words": [
{
"text": "09-12-2020",
"bounds": {
"top_left": {
"x": 219,
"y": 90
},
"top_right": {
"x": 392,
"y": 88
},
"bottom_right": {
"x": 391,
"y": 117
},
"bottom_left": {
"x": 219,
"y": 117
},
"width": 172.5,
"height": 28
},
"confidence": 0.99
},
{
"text": "Sat",
"bounds": {
"top_left": {
"x": 413,
"y": 88
},
"top_right": {
"x": 464,
"y": 88
},
"bottom_right": {
"x": 463,
"y": 117
},
"bottom_left": {
"x": 413,
"y": 117
},
"width": 50.5,
"height": 29
},
"confidence": 1
},
{
"text": "21:26:51",
"bounds": {
"top_left": {
"x": 483,
"y": 88
},
"top_right": {
"x": 622,
"y": 87
},
"bottom_right": {
"x": 622,
"y": 118
},
"bottom_left": {
"x": 483,
"y": 117
},
"width": 139,
"height": 30
},
"confidence": 0.99
}
]
},
{
"text": "WRW tower",
"bounds": {
"top_left": {
"x": 1069,
"y": 720
},
"top_right": {
"x": 1230,
"y": 721
},
"bottom_right": {
"x": 1230,
"y": 751
},
"bottom_left": {
"x": 1069,
"y": 750
},
"width": 161,
"height": 30
},
"average_confidence": 0.99,
"words": [
{
"text": "WRW",
"bounds": {
"top_left": {
"x": 1070,
"y": 721
},
"top_right": {
"x": 1120,
"y": 721
},
"bottom_right": {
"x": 1120,
"y": 750
},
"bottom_left": {
"x": 1070,
"y": 751
},
"width": 50,
"height": 29.5
},
"confidence": 0.99
},
{
"text": "tower",
"bounds": {
"top_left": {
"x": 1145,
"y": 722
},
"top_right": {
"x": 1227,
"y": 723
},
"bottom_right": {
"x": 1227,
"y": 750
},
"bottom_left": {
"x": 1145,
"y": 750
},
"width": 82,
"height": 27.5
},
"confidence": 0.99
}
]
}
]
}
],
"width": 1400,
"height": 789
}
}
]
}
},
"finishReason": "stop",
"usage": {
"inputTokens": 4903,
"outputTokens": 8566,
"totalTokens": 13469
}
}Run object detection task with raw output
Running object detection as a single task with <task>object_detection</task> in the system message makes it cheaper and faster with a fixed structured output that's pre-defined.
Learn more about running a task.
OpenAI SDK
Vercel AI SDK
LangChain SDK
typescript
python
import { z } from "zod";
import { zodResponseFormat } from "openai/helpers/zod";
const response = await interfaze.chat.completions.create({
model: "interfaze-beta",
messages: [
{
role: "system",
content: "<task>object_detection</task>",
},
{
role: "user",
content: [
{ type: "text", text: "Get the position of the crane in the image and any text" },
{
type: "image_url",
image_url: {
url: "https://r2public.jigsawstack.com/interfaze/examples/construction.png",
},
},
],
},
],
response_format: zodResponseFormat(z.any(), "empty_schema"),
});
console.log(response.choices[0].message.content);JSON output
{
"object": {
"name": "object_detection",
"result": {
"detected_objects": [
{
"bounds": {
"top_left": { "x": 630, "y": 139 },
"top_right": { "x": 769, "y": 139 },
"bottom_left": { "x": 630, "y": 225 },
"bottom_right": { "x": 769, "y": 225 },
"width": 139,
"height": 86
},
"label": "crane"
}
],
"gui_elements": [
{
"type": "text",
"bounds": {
"top_left": { "x": 1140, "y": 722 },
"top_right": { "x": 1232, "y": 722 },
"bottom_left": { "x": 1140, "y": 752 },
"bottom_right": { "x": 1232, "y": 752 },
"width": 92,
"height": 30
},
"interactivity": false,
"content": "tower"
}
]
}
}
}
