GUI Detection

copy markdown

Accurately detect buttons, menus, input fields, and other UI elements on a screen to perform computer use tasks like computer use, browsing the web, clicking buttons, filling forms, and navigating applications.

Precise bounding boxes for every interactive UI element
Distinguishes between buttons, links, inputs, dropdowns, text, and more
Understands interactivity, knows which elements can be clicked or typed into
Works on any application: browsers, desktop apps, terminals, and more

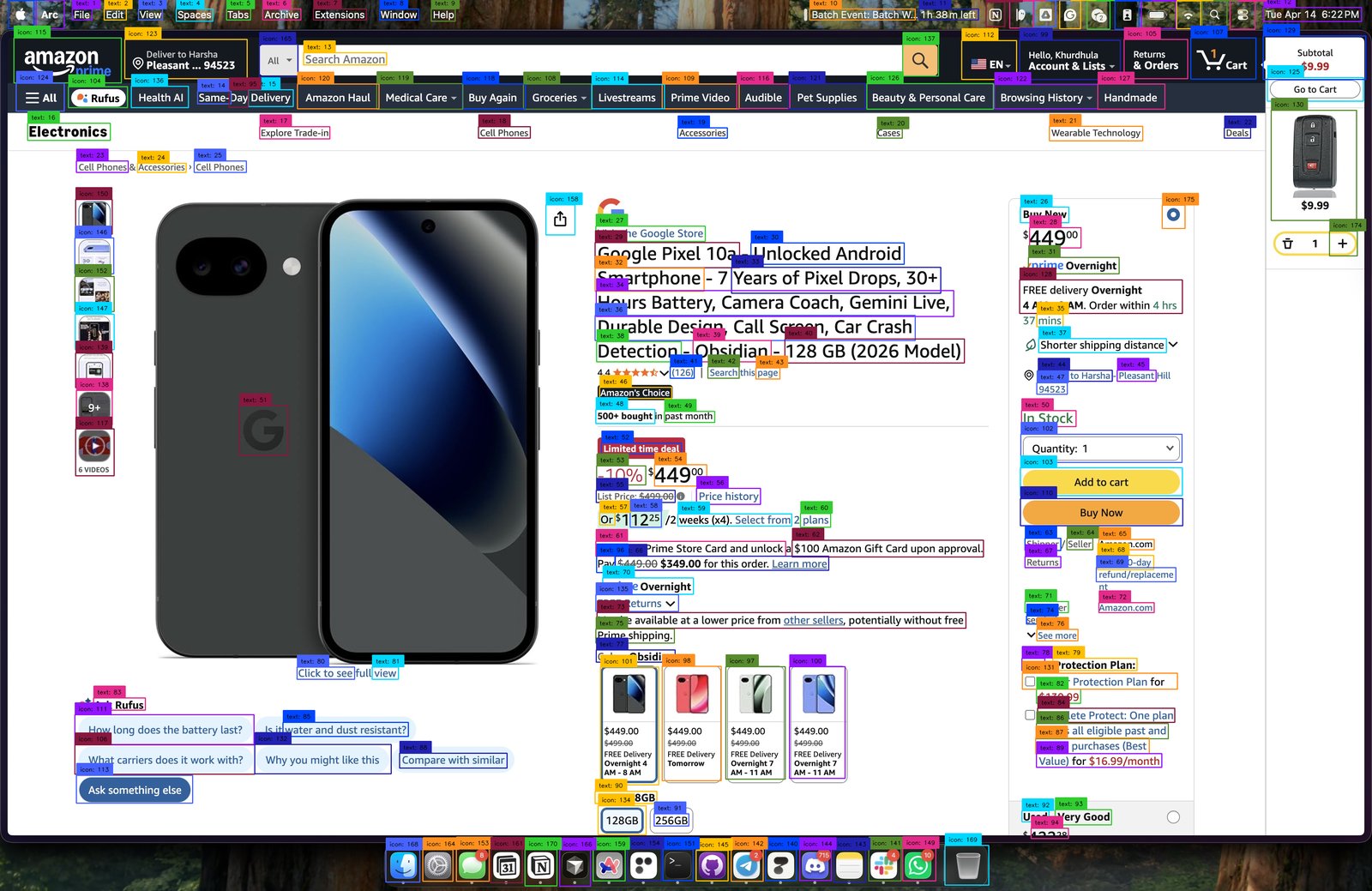

Detecting all GUI elements on a screen

OpenAI SDK

Vercel AI SDK

LangChain SDK

import { z } from "zod";
import { zodResponseFormat } from "openai/helpers/zod";

const ComputerUseSchema = z.object({
	elements: z.array(
		z.object({
			type: z.string().describe("type of UI element, e.g. button, link, input, dropdown, text, image"),
			label: z.string().describe("the visible text or label of the element"),
			top_left_x: z.number(),
			top_left_y: z.number(),
			bottom_right_x: z.number(),
			bottom_right_y: z.number(),
			interactive: z.boolean().describe("whether the element can be clicked or typed into"),
		})
	),
});

const response = await interfaze.chat.completions.create({
	model: "interfaze-beta",
	messages: [
		{
			role: "user",
			content: [
				{ type: "text", text: "Detect all interactive UI elements on this screen" },
				{
					type: "image_url",
					image_url: {
						url: "https://r2public.jigsawstack.com/interfaze/examples/computer_use.jpg",
					},
				},
			],
		},
	],
	response_format: zodResponseFormat(ComputerUseSchema, "computer_use_schema"),
});

console.log(response.choices[0].message.content);

//@ts-expect-error precontext is not typed
const precontext = response.precontext;
console.log("GUI Elements:", precontext[0]?.result?.gui_elements);

JSON output

object contains the extracted information defined in the schema. precontext contains the raw GUI element metadata with bounding boxes and interactivity flags.

{
  "object": {
    "elements": [
      {
        "type": "button",
        "label": "Sign In",
        "top_left_x": 1120,
        "top_left_y": 18,
        "bottom_right_x": 1192,
        "bottom_right_y": 44,
        "interactive": true
      },
      {
        "type": "input",
        "label": "Search",
        "top_left_x": 312,
        "top_left_y": 12,
        "bottom_right_x": 692,
        "bottom_right_y": 42,
        "interactive": true
      },
      {
        "type": "link",
        "label": "Home",
        "top_left_x": 72,
        "top_left_y": 64,
        "bottom_right_x": 116,
        "bottom_right_y": 88,
        "interactive": true
      }
    ]
  },
  "response": {
    "id": "interfaze-1775001605440",
    "object": "chat.completion",
    "model": "interfaze-beta",
    "usage": {
      "prompt_tokens": 3201,
      "completion_tokens": 4812,
      "total_tokens": 8013
    },
    "precontext": [
      {
        "name": "gui_detection",
        "result": {
          "gui_elements": [
            {
              "type": "button",
              "top_left_x": 1120,
              "top_left_y": 18,
              "bottom_right_x": 1192,
              "bottom_right_y": 44
            },
            {
              "type": "input",
              "top_left_x": 312,
              "top_left_y": 12,
              "bottom_right_x": 692,
              "bottom_right_y": 42
            },
            {
              "type": "link",
              "top_left_x": 72,
              "top_left_y": 64,
              "bottom_right_x": 116,
              "bottom_right_y": 88
            }
          ]
        }
      }
    ]
  }
}

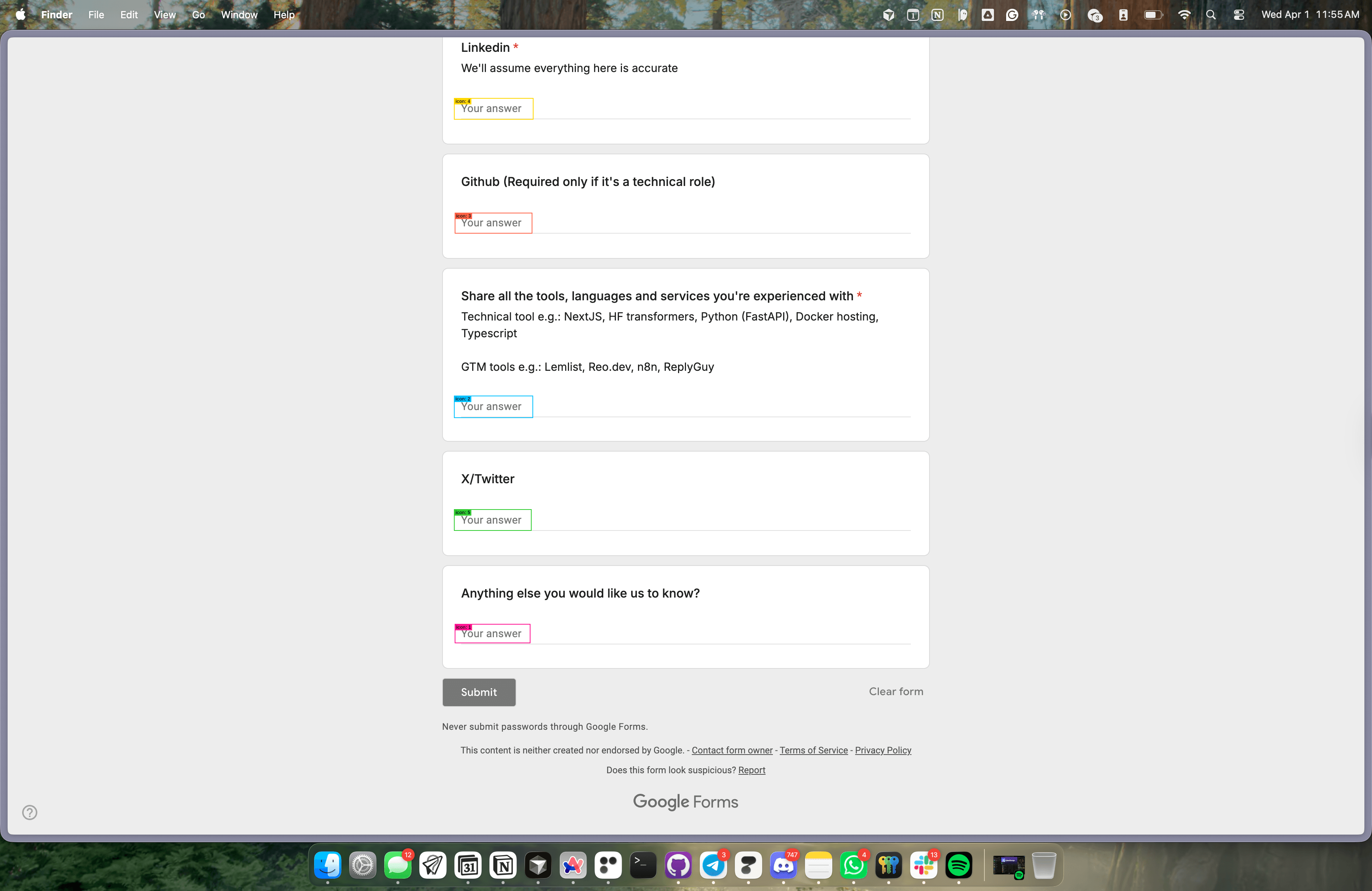

Computer use (Filling a form)

OpenAI SDK

Vercel AI SDK

LangChain SDK

import { z } from "zod";
import { zodResponseFormat } from "openai/helpers/zod";

const FormSchema = z.object({
	gui_elements: z.array(
		z.object({
			text_input_title: z.string().describe("title of the text input"),
			top_left_x: z.number(),
			top_left_y: z.number(),
			bottom_right_x: z.number(),
			bottom_right_y: z.number(),
		})
	),
});

const response = await interfaze.chat.completions.create({
	model: "interfaze-beta",
	messages: [
		{
			role: "user",
			content: [
				{ type: "text", text: "Text inputs to fill in the form" },
				{
					type: "image_url",
					image_url: {
						url: "https://r2public.jigsawstack.com/interfaze/examples/GUI_form.png",
					},
				},
			],
		},
	],
	response_format: zodResponseFormat(FormSchema, "form_schema"),
});

console.log(response.choices[0].message.content);

//@ts-expect-error precontext is not typed
const precontext = response.precontext;
console.log("GUI Elements:", precontext[0]?.result?.gui_elements);

JSON output

Generated bounding boxes for mouse to click on.

{
  "object": {
    "gui_elements": [
      {
        "text_input_title": "LinkedIn",
        "top_left_x": 1192,
        "top_left_y": 258,
        "bottom_right_x": 1399,
        "bottom_right_y": 313
      },
      {
        "text_input_title": "Github (Required only if it's a technical role)",
        "top_left_x": 1194,
        "top_left_y": 559,
        "bottom_right_x": 1396,
        "bottom_right_y": 612
      },
      {
        "text_input_title": "Share all the tools, languages and services you're experienced with",
        "top_left_x": 1192,
        "top_left_y": 1039,
        "bottom_right_x": 1398,
        "bottom_right_y": 1096
      },
      {
        "text_input_title": "X/Twitter",
        "top_left_x": 1192,
        "top_left_y": 1337,
        "bottom_right_x": 1394,
        "bottom_right_y": 1392
      },
      {
        "text_input_title": "Anything else you would like us to know?",
        "top_left_x": 1194,
        "top_left_y": 1638,
        "bottom_right_x": 1391,
        "bottom_right_y": 1687
      }
    ]
  },
  "response": {
    "id": "interfaze-1776383791550",
    "modelId": "interfaze-beta",
    "body": {
      "id": "interfaze-1776383791550",
      "object": "chat.completion",
      "created": 1776383791,
      "model": "interfaze-beta",
      "usage": {
        "prompt_tokens": 4196,
        "completion_tokens": 11987,
        "total_tokens": 16183
      },
      "precontext": [
        {
          "name": "gui_detection",
          "result": {
            "annotated_image": "https://r2public.jigsawstack.com/interfaze/examples/form_computer_use.png",
            "gui_elements": [
              {
                "type": "icon",
                "bounds": {
                  "top_left": {
                    "x": 1194,
                    "y": 1638
                  },
                  "top_right": {
                    "x": 1391,
                    "y": 1638
                  },
                  "bottom_left": {
                    "x": 1194,
                    "y": 1687
                  },
                  "bottom_right": {
                    "x": 1391,
                    "y": 1687
                  },
                  "width": 197,
                  "height": 49
                }
              },
              {
                "type": "icon",
                "bounds": {
                  "top_left": {
                    "x": 1192,
                    "y": 1039
                  },
                  "top_right": {
                    "x": 1398,
                    "y": 1039
                  },
                  "bottom_left": {
                    "x": 1192,
                    "y": 1096
                  },
                  "bottom_right": {
                    "x": 1398,
                    "y": 1096
                  },
                  "width": 206,
                  "height": 57
                }
              },
              {
                "type": "icon",
                "bounds": {
                  "top_left": {
                    "x": 1194,
                    "y": 559
                  },
                  "top_right": {
                    "x": 1396,
                    "y": 559
                  },
                  "bottom_left": {
                    "x": 1194,
                    "y": 612
                  },
                  "bottom_right": {
                    "x": 1396,
                    "y": 612
                  },
                  "width": 202,
                  "height": 53
                }
              },
              {
                "type": "icon",
                "bounds": {
                  "top_left": {
                    "x": 1192,
                    "y": 258
                  },
                  "top_right": {
                    "x": 1399,
                    "y": 258
                  },
                  "bottom_left": {
                    "x": 1192,
                    "y": 313
                  },
                  "bottom_right": {
                    "x": 1399,
                    "y": 313
                  },
                  "width": 207,
                  "height": 55
                }
              },
              {
                "type": "icon",
                "bounds": {
                  "top_left": {
                    "x": 1192,
                    "y": 1337
                  },
                  "top_right": {
                    "x": 1394,
                    "y": 1337
                  },
                  "bottom_left": {
                    "x": 1192,
                    "y": 1392
                  },
                  "bottom_right": {
                    "x": 1394,
                    "y": 1392
                  },
                  "width": 202,
                  "height": 55
                }
              }
            ]
          }
        }
      ]
    }
  },
  "finishReason": "stop",
  "usage": {
    "inputTokens": 4196,
    "outputTokens": 11987,
    "totalTokens": 16183
  }
}

Run GUI detection task with raw output

Running GUI detection as a single task with <task>gui_detection</task> in the system message makes it cheaper and faster with a fixed structured output.

Learn more about running a task.

OpenAI SDK

Vercel AI SDK

LangChain SDK

import { z } from "zod";
import { zodResponseFormat } from "openai/helpers/zod";

const response = await interfaze.chat.completions.create({
	model: "interfaze-beta",
	messages: [
		{
			role: "system",
			content: "<task>gui_detection</task>",
		},
		{
			role: "user",
			content: [
				{ type: "text", text: "Detect all interactive UI elements on this screen" },
				{
					type: "image_url",
					image_url: {
						url: "https://r2public.jigsawstack.com/interfaze/examples/computer_use.jpg",
					},
				},
			],
		},
	],
	response_format: zodResponseFormat(z.any(), "empty_schema"),
});

console.log(response.choices[0].message.content);

JSON output

{
  "object": {
    "name": "gui_detection",
    "result": {
      "gui_elements": [
        {
          "type": "button",
          "top_left_x": 1120,
          "top_left_y": 18,
          "bottom_right_x": 1192,
          "bottom_right_y": 44
        },
        {
          "type": "input",
          "top_left_x": 312,
          "top_left_y": 12,
          "bottom_right_x": 692,
          "bottom_right_y": 42
        },
        {
          "type": "link",
          "top_left_x": 72,
          "top_left_y": 64,
          "bottom_right_x": 116,
          "bottom_right_y": 88
        },
        {
          "type": "dropdown",
          "top_left_x": 720,
          "top_left_y": 64,
          "bottom_right_x": 820,
          "bottom_right_y": 90
        }
      ]
    }
  }
}
